CRGX 4856 Detail Photos

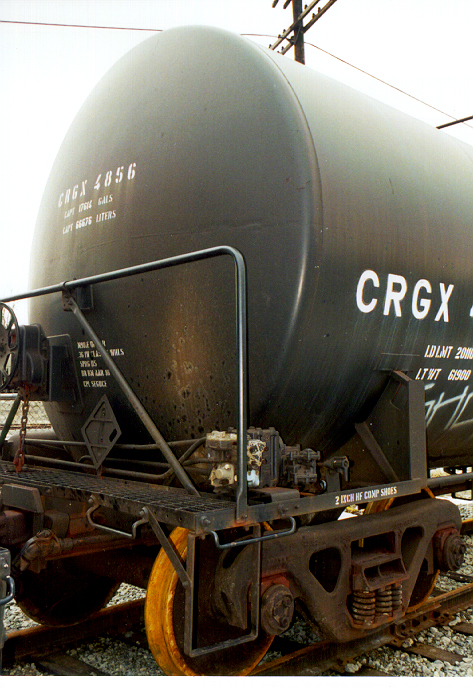

Here are some detail shots of CRGX 4856 taken on 1/16/99. I also made field measurements, and plan to make scale drawings in the future. No reporting marks on top of the tank, and note the lack of stenciling on the manway. Tank diameter is 119 inches, and height of the bottom of the tank above the rails is 32 inches at center. Tank length from end seam to center is 17' 7.5"; and note the center of tank is at the manway center, not at the middle weld seam. Truck centers are spaced at 29'6", and overall length is 43' 1". Also, notice that this is not a straight tank, there is a very slight bend to the tank body.
